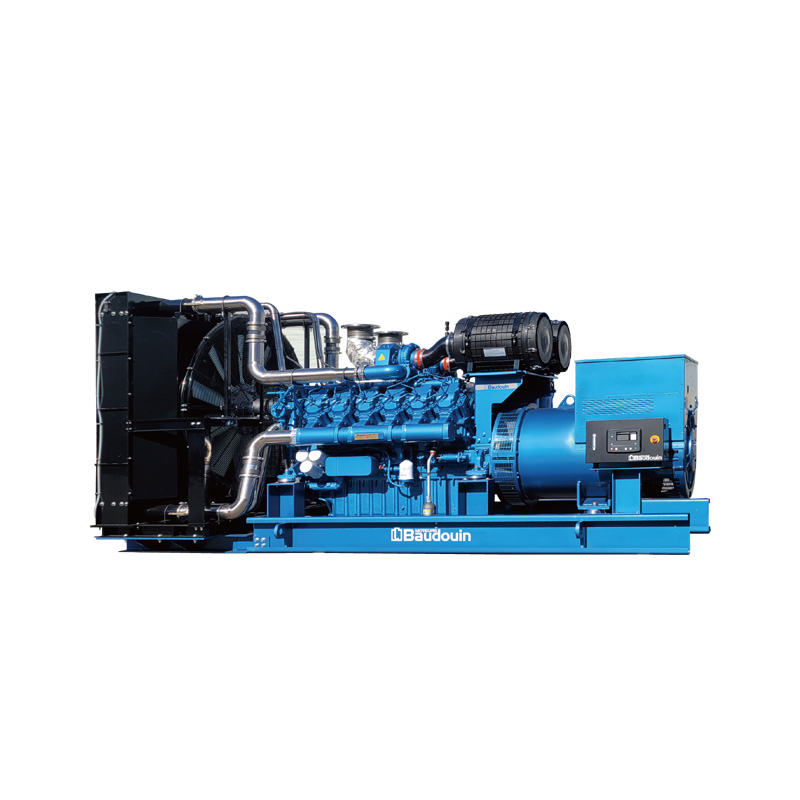

BAUDOUIN Diesel Engine Generator set
Properties and Uses of the Product
- Frequency 50/60Hz
- Voltage 110 ~ 600V, 3.3kV, 6.6kV
- Power Range 800kW ~ 2500kW
- Uses Emergency power generation in buildings, hotels, hospitals, and factories
BAUDOUIN 60Hz / 1800rpm
| MODEL | ST'BY (KW) |
PRIME (KW) |
Dimension LxWxH(mm) |
Weight (kg) |
Radiator Core Size |
Exhaust Pipe Size |
Engine Model |
ST'BY (PS) |
PRIME (PS) |
No. of Cylinder |
Displacement (Liter) |
Governer | Fuel Consumption (Liter/hr) |
Oil Capacity (Liter) |
Coolant Capacity (Liter) |
| PBS-800 | 800 | 720 | 4470 x 1665 x 2146 | 6980 | 1600 x 1560 | 12" | 12M26D902 | 1226 | 1115 | VEE - 12 | 31.8 | Electronic | 203.0 | 124 | 234 |
| PBS-900 | 900 | 800 | 4470 x 1665 x 2146 | 7050 | 1600 x 1560 | 12" | 12M26D1012 | 1376 | 1251 | VEE - 12 | 31.8 | Electronic | 222.0 | 124 | 234 |
| PBS-1000 | 1000 | 900 | 4470 x 1665 x 2146 | 7300 | 1600 x 1560 | 12" | 12M26D1115 | 1516 | 1379 | VEE - 12 | 31.8 | Electronic | 241.0 | 124 | 234 |
| PBS-1200 | 1200 | 1100 | 4900 x 1985 x 2276 | 8950 | 1920 x 1560 | 12" | 12M33D1320 | 1795 | 1632 | VEE - 12 | 39.2 | Electronic | 284.0 | 161 | 246 |
| PBS-1300 | 1300 | 1170 | 4900 x 1985 x 2276 | 8960 | 1920 x 1560 | 12" | 12M33D1420 | 1931 | 1754 | VEE - 12 | 39.2 | Electronic | 305.0 | 161 | 246 |
| PBS-1500 | 1500 | 1350 | 5100 x 2256 x 2588 | 12120 | 2170 x 1850 | 12" | 16M33D1680 | 2285 | 2081 | VEE - 16 | 52.3 | ECU | 359.0 | 200 | 405 |
| PBS-1600 | 1600 | 1475 | 5230 x 2256 x 2938 | 12600 | 2180 x 2200 | 12" | 16M33D1785 | 2427 | 2209 | VEE - 16 | 52.3 | ECU | 383.0 | 200 | 462 |
| PBS-1760 | 1760 | 1600 | 5230 x 2256 x 2938 | 12600 | 2180 x 2200 | 12" | 16M33D1920 | 2611 | 2373 | VEE - 16 | 52.3 | ECU | 440.0 | 200 | 462 |
| PBS-2000 | 2000 | 1850 | 6295 x 2294 x 2811 | 14620 | 2160 x 2010 | 14" | 20M33D2230 | 3032 | 2756 | VEE - 20 | 65.4 | ECU | 493.0 | 240 | 559 |
| 5900 x 2795 x 2949 | 20000 | 2610 x 2090 | 14" | 12M55D2230 | 3033 | 2788 | VEE - 12 | 65.65 | ECU | 465.0 | 480 | 854 | |||
| PBS-2250 | 2250 | 2000 | 6295 x 2294 x 2811 | 14800 | 2160 x 2010 | 14" | 20M33D2420 | 3291 | 2992 | VEE - 20 | 65.4 | ECU | 538.0 | 240 | 559 |
| 5950 x 2795 x 2949 | 21000 | 2610 x 2090 | 14" | 12M55D2460 | 3346 | 2992 | VEE - 12 | 65.65 | ECU | 496.0 | 480 | 854 | |||
| PBS-2500 | 2500 | 2250 | 6100 x 2795 x 2949 | 21000 | 2610 x 2090 | 14" | 12M55D2700 | 3672 | 3332 | VEE - 12 | 65.65 | ECU | 556.0 | 480 | 854 |
BAUDOUIN 50Hz / 1500rpm
| MODEL | ST'BY (KW) |
PRIME (KW) |
Dimension LxWxH(mm) |
Weight (kg) |
Radiator Core Size |
Exhaust Pipe Size |
Engine Model |
ST'BY (PS) |
PRIME (PS) |
No. of Cylinder |
Displacement (Liter) |
Governer | Fuel Consumption (Liter/hr) |
Oil Capacity (Liter) |
Coolant Capacity (Liter) |
| PBS-800 | 720 | 640 | 4470 x 1665 x 2146 | 6980 | 1600 x 1560 | 12" | 12M26D902 | 1077 | 979 | VEE - 12 | 31.8 | Electronic | 169.0 | 124 | 234 |
| PBS-900 | 800 | 720 | 4470 x 1665 x 2146 | 7050 | 1600 x 1560 | 12" | 12M26D1012 | 1226 | 1115 | VEE - 12 | 31.8 | Electronic | 192.0 | 124 | 234 |
| PBS-1000 | 880 | 800 | 4470 x 1665 x 2146 | 7300 | 1600 x 1560 | 12" | 12M26D1115 | 1316 | 1196 | VEE - 12 | 31.8 | Electronic | 208.0 | 124 | 234 |
| PBS-1200 | 1050 | 950 | 4900 x 1985 x 2276 | 8950 | 1920 x 1560 | 12" | 12M33D1320 | 1564 | 1414 | VEE - 12 | 39.2 | Electronic | 234.0 | 161 | 246 |
| PBS-1300 | 1100 | 1000 | 4900 x 1985 x 2276 | 8960 | 1920 x 1560 | 12" | 12M33D1420 | 1645 | 1496 | VEE - 12 | 39.2 | Electronic | 257.0 | 161 | 246 |
| PBS-1500 | 1250 | 1100 | 5100 x 2250 x 2588 | 12120 | 2170 x 1850 | 12" | 16M33D1680 | 1904 | 1740 | VEE - 16 | 52.3 | ECU | 300.0 | 200 | 405 |
| PBS-1600 | 1500 | 1350 | 5230 x 2256 x 2938 | 12600 | 2180 x 2200 | 12" | 16M33D1785 | 2243 | 2039 | VEE - 16 | 52.3 | ECU | 350.0 | 200 | 462 |
| PBS-1760 | 1650 | 1500 | 5230 x 2256 x 2938 | 12600 | 2180 x 2200 | 12" | 16M33D1920 | 2447 | 2222 | VEE - 16 | 52.3 | ECU | 402.0 | 200 | 462 |
| PBS-2000 | 1850 | 1700 | 6295 x 2294 x 2811 | 14620 | 2160 x 2010 | 14" | 20M33D2230 | 2747 | 2516 | VEE - 20 | 65.4 | ECU | 433.0 | 240 | 559 |
| 5900 x 2795 x 2949 | 20000 | 2610 x 2090 | 14" | 12M55D2230 | 2747 | 2516 | VEE - 12 | 65.65 | ECU | 407.0 | 480 | 854 | |||
| PBS-2250 | 2000 | 1800 | 6295 x 2294 x 2811 | 14800 | 2160 x 2010 | 14" | 20M33D2420 | 3005 | 2732 | VEE - 20 | 65.4 | ECU | 478.0 | 240 | 559 |
| 5950 x 2795 x 2949 | 21000 | 2610 x 2090 | 14" | 12M55D2460 | 3006 | 2700 | VEE - 12 | 65.65 | ECU | 437.0 | 480 | 854 | |||
| PBS-2500 | 2250 | 2000 | 6100 x 2795 x 2949 | 21000 | 2610 x 2090 | 14" | 12M55D2700 | 3332 | 2992 | VEE - 12 | 65.65 | ECU | 490.0 | 480 | 854 |
