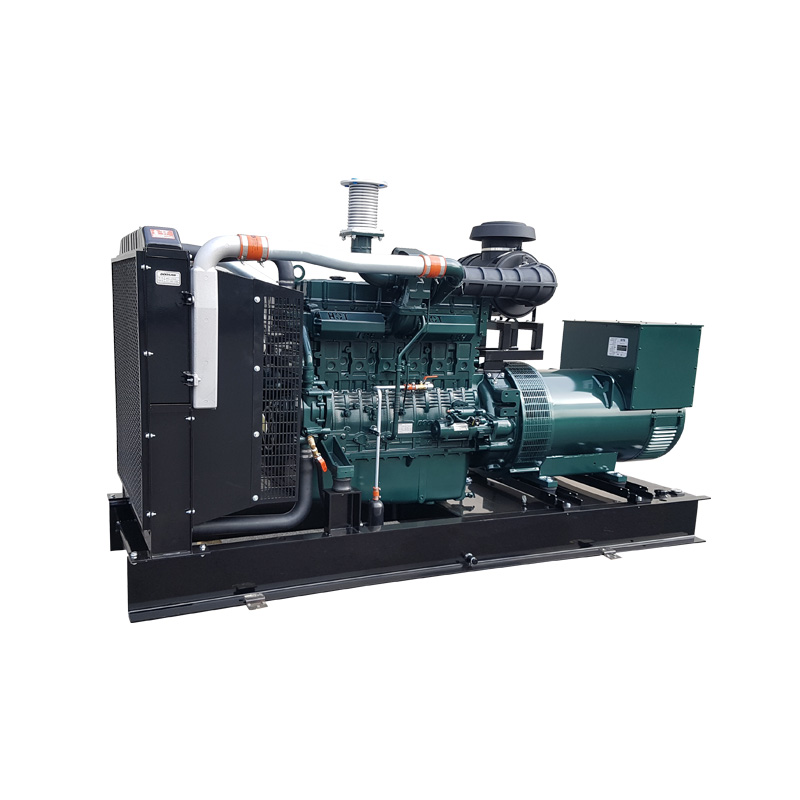

DOOSAN Diesel Engine Generator set

Properties and Uses of the Product

Frequency 50/60Hz
Voltage 110 ~ 600V, 3.3kV, 6.6kV
Power Range 20kW ~ 900kW
Uses Emergency power generation in buildings, hotels, hospitals, and factories

DOOSAN Engine 60Hz / 1800rpm

MODEL	ST'BY (KW)	PRIME (KW)	Dimension LxWxH(mm)	Weight (kg)	Radiator Core Size	Exhaust Pipe Size	Engine Model	ST'BY (PS)	PRIME (PS)	No. of Cylinder	Displacement (Liter)	Governer	Fuel Consumption (Liter/hr)	Oil Capacity (Liter)	Coolant Capacity (Liter)
PDS-66	66	60	2400 x 850 x 1491	950	710 x 640	3"	SP344CB	100	91	INLINE - 6	8.071	Mechanical	23.2	16.0	31.0
PDS-85	85	76	2400 x 850 x 1552	1000	710 x 640	3"	SP344CC	125	113	INLINE - 6	8.071	Mechanical	32.5	16.0	31.0
PDS-90	90	82	2400 x 850 x 1491	1400	710 x 640	3"	D1146	143	130	INLINE - 6	8.071	Mechanical	23.2	16.0	31.0
PDS-130	130	118	2400 x 850 x 1552	1500	710 x 640	4"	D1146T	202	170	INLINE - 6	8.071	Mechanical	32.5	16.0	31.0
PDS-170	170	154	2650 x 930 x 1685	1770	800 x 925	4"	P086TI-1	260	237	INLINE - 6	8.071	Electronic	42.4	16.0	46.0
PDS-175	175	159	2600 x 920 x 1434	1870	770 x 820	4"	DE12T	270	245	INLINE - 6	11.051	Mechanical	45.8	23.0	47.0
PDS-200	200	182	2650 x 930 x 1685	1770	800 x 925	4"	P086TI	303	279	INLINE - 6	8.071	Electronic	50.6	16.0	46.0
PDS-230	230	200	2650 x 930 x 1870	1910	800 x 925	4"	DP086LA	344	310	INLINE - 6	8.071	Electronic	56.0	16.0	40.0
PDS-250	250	227	2994 x 1100 x 1633	2200	930 x 1020	4"	P126TI-3	375	343	INLINE - 6	11.051	Electronic	70.3	23.0	47.0
PDS-275	275	250	2994 x 1100 x 1633	2200	930 x 1020	4"	P126TI	405	378	INLINE - 6	11.051	Electronic	70.3	23.0	47.0
PDS-300	300	273	2994 x 1100 x 1633	2400	930 x 1020	4"	P126TI-II	465	418	INLINE - 6	11.051	Electronic	73.8	23.0	47.0
PDS-330	330	300	3040 x 1110 x 1735	2600	930 x 1020	4"	DP126LA	510	470	INLINE - 6	11.051	Electronic	80.5	44.0	51.0
PDS-360	360	327	3040 x 1110 x 1735	2700	930 x 1020	4"	DP126LB	547	498	INLINE - 6	11.051	Electronic	85.8	44.0	51.0
PDS-400	400	364	2990 x 1400 x 1812	2800	1160 x 1220	6"	P158LE	623	547	VEE - 8	14.618	Electronic	102.5	21.0	65.0
PDS-450	450	409	2990 x 1400 x 1812	3200	1160 x 1220	6"	DP158LC	697	634	VEE - 8	14.618	Electronic	111.5	22.0	65.0
PDS-500	500	455	2990 x 1400 x 1812	3250	1160 x 1220	6"	DP158LD	756	687	VEE - 8	14.618	Electronic	127.1	22.0	65.0
PDS-550	550	500	3200 x 1400 x 1873	3500	1160 x 1220	6"	DP180LA	836	760	VEE - 10	18.273	Electronic	140.5	34.0	85.0
PDS-610	610	555	3200 x 1400 x 1873	3800	1160 x 1220	6"	DP180LB	899	817	VEE - 10	18.273	Electronic	150.7	34.0	85.0
PDS-660	660	600	3390 x 1400 x 2118	4000	1320 x 1510	6"	DP222LA	1002	911	VEE - 12	21.927	Electronic	161.7	40.0	108.0
PDS-700	700	636	3390 x 1400 x 2118	4100	1320 x 1510	6"	DP222LB	1063	967	VEE - 12	21.927	Electronic	172.7	40.0	108.0
PDS-750	750	682	3390 x 1400 x 2118	4350	1320 x 1510	6"	DP222LC	1126	1023	VEE - 12	21.927	Electronic	183.2	40.0	108.0
PDS-750	750	680	3670 x 1640 x 2237	4700	1355 x 1755	8"	DP222CA	1137	1036	VEE - 12	21.927	ECU	180	75.0	172.0
PDS-800	800	720	3670 x 1640 x 2237	4750	1355 x 1755	8"	DP222CB	1210	1101	VEE - 12	21.927	ECU	204	75.0	172.0
PDS-900	900	800	3670 x 1640 x 2237	4850	1355 x 1755	8"	DP222CC	1353	1224	VEE - 12	21.927	ECU	216	75.0	172.0

DOOSAN Engine 50Hz / 1500rpm

MODEL	ST'BY (KW)	PRIME (KW)	Dimension LxWxH(mm)	Weight (kg)	Radiator Core Size	Exhaust Pipe Size	Engine Model	ST'BY (PS)	PRIME (PS)	No. of Cylinder	Displacement (Liter)	Governer	Fuel Consumption (Liter/hr)	Oil Capacity (Liter)	Coolant Capacity (Liter)
PDS-66	52	46	2400 x 850 x 1491	950	710 x 640	3"	SP344CB	84	75	INLINE - 6	8.071	Mechanical	23.2	16.0	31.0
PDS-85	66	60	2400 x 850 x 1552	1000	710 x 640	3"	SP344CC	111	100	INLINE - 6	8.071	Mechanical	32.5	16.0	31.0
PDS-90	75	68	2400 x 850 x 1491	1400	710 x 640	3"	D1146	116	105	INLINE - 6	8.071	Mechanical	20.6	16.0	38.0
PDS-130	100	91	2400 x 850 x 1552	1500	710 x 800	4"	D1146T	160	145	INLINE - 6	8.071	Mechanical	25.9	16.0	42.0 (option)
PDS-170	145	132	2650 x 930 x 1685	1770	800 x 925	4"	P086TI-1	223	203	INLINE - 6	8.071	Electronic	35.4	16.0	46.0
PDS-175	148	134	2600 x 920 x 1434	1870	770 x 820	4"	DE12T	226	205	INLINE - 6	11.051	Mechanical	38.2	23.0	47.0
PDS-200	175	159	2650 x 930 x 1685	1770	800 x 925	4"	P086TI	270	240	INLINE - 6	8.071	Electronic	43.1	16.0	46.0
PDS-230	200	180	2650 x 930 x 1870	1910	800 x 925	4"	DP086LA	305	273	INLINE - 6	8.071	Electronic	48.7	16.0	50.0
PDS-275	245	223	2994 x 1100 x 1633	2200	930 x 1020	4"	P126TI	370	328	INLINE - 6	11.051	Electronic	58.1	23.0	59.0
PDS-300	260	236	2994 x 1100 x 1633	2400	930 x 1020	4"	P126TI-II	400	360	INLINE - 6	11.051	Electronic	63.1	23.0	59.0
PDS-330	290	264	3040 x 1110 x 1735	2600	930 x 1020	4"	DP126LA	437	399	INLINE - 6	11.051	Electronic	68.1	44.0	59.0
PDS-360	320	291	3040 x 1110 x 1735	2700	930 x 1020	4"	DP126LB	492	445	INLINE - 6	11.051	Electronic	76.0	44.0	59.0
PDS-400	375	341	2990 x 1400 x 1809	2800	1160 x 1220	6"	P158LE	563	494	VEE - 8	14.618	Electronic	89.3	21.0	70.0
PDS-450	400	364	2990 x 1400 x 1783	3200	1160 x 1220	6"	DP158LC	610	555	VEE - 8	14.618	Electronic	99.6	22.0	83.0
PDS-500	450	409	2990 x 1400 x 1783	3250	1160 x 1220	6"	DP158LD	693	630	VEE - 8	14.618	Electronic	115.1	22.0	83.0
PDS-550	500	455	3200 x 1400 x 1873	3500	1310 x 1220	6"	DP180LA	750	682	VEE - 10	18.273	Electronic	123.6	34.0	115.0
PDS-610	550	500	3200 x 1400 x 1873	3800	1310 x 1220	6"	DP180LB	832	756	VEE - 10	18.273	Electronic	136.4	34.0	115.0
PDS-700	600	545	3390 x 1400 x 2088	4100	1310 x 1510	6"	DP222LB	903	821	VEE - 12	21.927	Electronic	147.1	40.0	120.0
PDS-750	660	600	3390 x 1400 x 2088	4350	1310 x 1510	6"	DP222LC	983	894	VEE - 12	21.927	Electronic	161.0	40.0	120.0
PDS-750	660	600	3670 x 1640 x 2237	4700	1355 x 1755	8"	DP222CA	988	901	VEE - 12	21.927	ECU	158	75.0	172.0
PDS-800	710	630	3670 x 1640 x 2237	4750	1355 x 1755	8"	DP222CB	1074	959	VEE - 12	21.927	ECU	168	75.0	172.0
PDS-900	800	710	3670 x 1640 x 2237	4850	1355 x 1755	8"	DP222CC	1190	1224	VEE - 12	21.927	ECU	190	75.0	172.0
