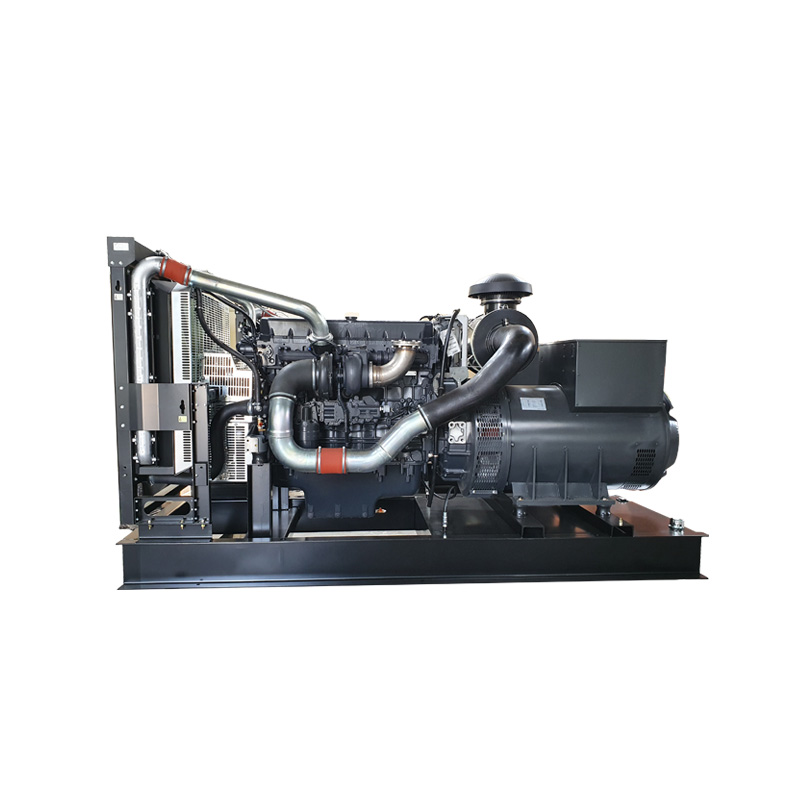

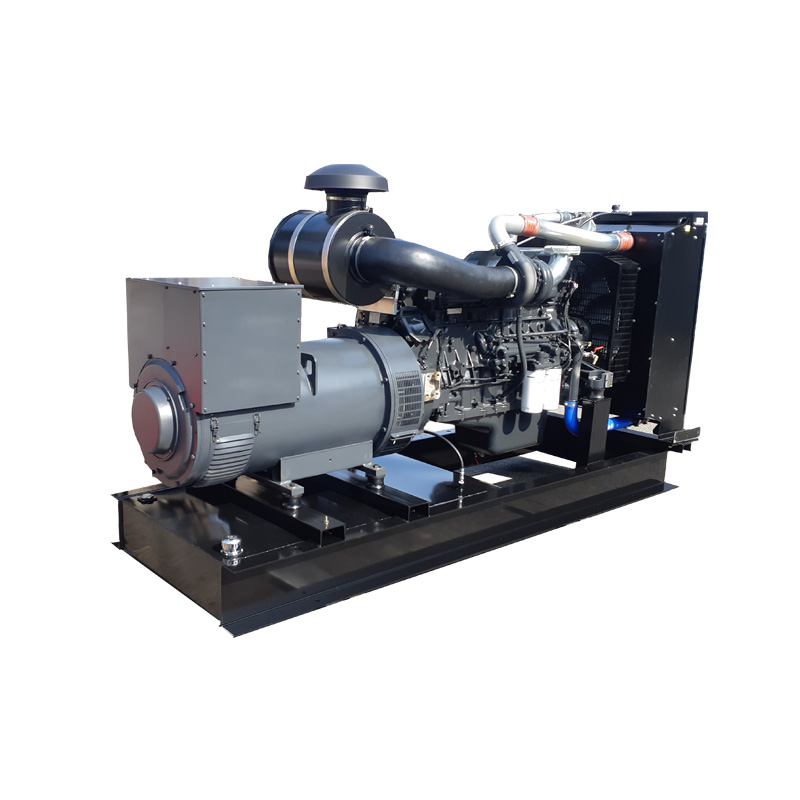

FIAT Diesel Engine Generator set
Properties and Uses of the Product
- Frequency 50/60Hz
- Voltage 110 ~ 600V, 3.3kV, 6.6kV
- Power Range 30kW ~ 550kW
- Uses Emergency power generation in buildings, hotels, hospitals, and factories
FPT 엔진 60Hz / 1800rpm
| MODEL | ST'BY (KW) |
PRIME (KW) |
PG BASE Dimension LxWxH(mm) |
Weight (kg) |
Radiator Core Size |
Exhaust Pipe Size |
Engine Model |
ST'BY (HP) |
PRIME (HP) |
No. of Cylinder |
Displacement (Liter) |
Governer | Fuel Consumption @ Prime 100% (Liter/hr) |
Oil Capacity (Liter) |
Coolant Capacity (Liter) |
| PFS-30 | 30 | 25 | 1500×635×1262 | 760 | 517 x 570 | 3" | S8000 AM1 | 49 | 45 | INLINE - 3 | 2.9 | Mechanical | 9.0 | 8.8 | 14.0 |
| PFS-50 | 50 | 45 | 2100×800×1253 | 1000 | 526 x 450 | 4" | NEF45 SM1X | 79 | 72 | INLINE - 4 | 4.5 | Mechanical | 15.1 | 12.8 | 18.5 |
| PFS-60 | 60 | 50 | 2100×800×1253 | 1000 | 526 x 450 | 4" | NEF45 SM1A | 90 | 82 | INLINE - 4 | 4.5 | Mechanical | 15.5 | 12.8 | 18.5 |
| PFS-80 | 80 | 70 | 2100×800×1253 | 1000 | 526 x 450 | 4" | NEF45 SM3 | 119 | 109 | INLINE - 4 | 4.5 | Mechanical | 21.6 | 12.8 | 18.5 |
| PFS-100 | 100 | 85 | 2100×800×1476 | 1200 | 668 x 780 | 4" | NEF45 TM2A | 148 | 135 | INLINE - 4 | 4.5 | Mechanical | 26.3 | 12.8 | 18.5 |
| PFS-115 | 115 | 100 | 2100×800×1476 | 1200 | 668 x 780 | 4" | NEF45 TM3 | 168 | 153 | INLINE - 4 | 4.5 | Mechanical | 29.3 | 12.8 | 18.5 |
| PFS-150 | 150 | 135 | 2650×930×1492 | 1300 | 708 x 900 | 4" | NEF67 TM3A | 231 | 210 | INLINE - 6 | 6.7 | Mechanical | 40.1 | 17.2 | 25.5 |
| PFS-175 | 175 | 155 | 2650×930×1492 | 1500 | 708 x 900 | 4" | NEF67 TM4 | 257 | 235 | INLINE - 6 | 6.7 | Mechanical | 42.0 | 17.2 | 25.5 |
| PFS-180 | 180 | 160 | 2650×930×1492 | 1500 | 708 x 900 | 4" | NEF67 TM7 | 273 | 248 | INLINE - 6 | 6.7 | Mechanical | 45.5 | 17.2 | 25.5 |
| PFS-200 | 200 | 190 | 2650×930×1552 | 1500 | 608 x 900 | 4" | NEF67 TE3PV | 295 | 268 | INLINE - 6 | 6.7 | ECR | 42.0 | 15.8 | 21.2 |
| PFS-250 | 250 | 225 | 2800×1075×1642 | 2400 | 920 x 900 | 4" | CURSOR87 TE3 | 375 | 346 | INLINE - 6 | 8.7 | ECR | 63.0 | 28.0 | 58.0 |
| PFS-310 | 310 | 280 | 2800×1075×1642 | 2200 | 920 x 900 | 4" | CURSOR87 TE4 | 459 | 422 | INLINE - 6 | 8.7 | ECR | 78.1 | 28.0 | 58.0 |
| PFS-330 | 330 | 300 | 3000×1123×1671 | 2300 | 1043 x 1050 | 4" | CURSOR13 TE2A | 516 | 472 | INLINE - 6 | 12.9 | EUI | 76.1 | 35.0 | 67.0 |
| PFS-370 | 370 | 340 | 3000×1300×1671 | 2500 | 1007 x 1000 | 4" | CURSOR13 TE3A | 567 | 516 | INLINE - 6 | 12.9 | EUI | 98.1 | 35.0 | 68.0 |
| PFS-430 | 430 | 375 | 3200×1223×1691 | 2700 | 888 x 900 | 4" | CR13 TE6W | 657 | 597 | INLINE - 6 | 12.9 | ECR | 102.0 | 32.0 | 67.5 |
| PFS-450 | 450 | 400 | 3200×1223×1691 | 3000 | 888 x 900 | 4" | CR13 TE7W | 684 | 622 | INLINE - 6 | 12.9 | ECR | 110.9 | 32.0 | 67.5 |
| PFS-550 | 550 | 500 | 3200×1122×1821 | 3100 | 1007 x 1000 | 4" | CR16 TE1W | 806 | 732 | INLINE - 6 | 15.9 | ECR | 128.0 | 38.0 | 52.5 |
FPT Engine 50Hz / 1500rpm
| MODEL | ST'BY (KW) |
PRIME (KW) |
PG BASE Dimension LxWxH(mm) |
Weight (kg) |
Radiator Core Size |
Exhaust Pipe Size |
Engine Model |
ST'BY (HP) |
PRIME (HP) |
No. of Cylinder |
Displacement (Liter) |
Governer | Fuel Consumption @ Prime 100% (Liter/hr) |
Oil Capacity (Liter) |
Coolant Capacity (Liter) |
| PFS-30 | 29 | 26 | 1500×635×1262 | 760 | 517 x 570 | 3" | S8000 AM1 | 39 | 35 | INLINE - 3 | 2.9 | Mechanical | 7.1 | 8.8 | 14.0 |
| PFS-50 | 53 | 46 | 2100×800×1253 | 1000 | 526 x 450 | 4" | NEF45 SM1X | 71 | 62 | INLINE - 4 | 4.5 | Mechanical | 15.1 | 12.8 | 18.5 |
| PFS-60 | 54 | 48 | 2100×800×1253 | 1000 | 526 x 450 | 4" | NEF45 SM1A | 72 | 64 | INLINE - 4 | 4.5 | Mechanical | 13.7 | 12.8 | 18.5 |
| PFS-80 | 75 | 67 | 2100×800×1253 | 1000 | 526 x 450 | 4" | NEF45 SM3 | 101 | 90 | INLINE - 4 | 4.5 | Mechanical | 19.4 | 12.8 | 18.5 |
| PFS-100 | 90 | 81 | 2100×800×1476 | 1200 | 668 x 780 | 4" | NEF45 TM2A | 121 | 109 | INLINE - 4 | 4.5 | Mechanical | 22.0 | 12.8 | 18.5 |
| PFS-115 | 112 | 100 | 2100×800×1476 | 1200 | 668 x 780 | 4" | NEF45 TM3 | 150 | 134 | INLINE - 4 | 4.5 | Mechanical | 27.6 | 12.8 | 18.5 |
| PFS-150 | 146 | 128 | 2650×930×1492 | 1300 | 708 x 900 | 4" | NEF67 TM3A | 196 | 172 | INLINE - 6 | 6.7 | Mechanical | 36.0 | 17.2 | 25.5 |
| PFS-175 | 158 | 139 | 2650×930×1492 | 1500 | 708 x 900 | 4" | NEF67 TM4 | 212 | 186 | INLINE - 6 | 6.7 | Mechanical | 36.6 | 17.2 | 25.5 |
| PFS-180 | 186 | 165 | 2650×930×1492 | 1500 | 708 x 900 | 4" | NEF67 TM7 | 249 | 221 | INLINE - 6 | 6.7 | Mechanical | 35.0 | 17.2 | 25.5 |
| PFS-200 | 186 | 164 | 2650×930×1552 | 1500 | 608 x 900 | 4" | NEF67 TE3PV | 249 | 220 | INLINE - 6 | 6.7 | ECR | 38.0 | 15.8 | 21.2 |
| PFS-250 | 238 | 214 | 2800×1075×1642 | 2400 | 920 x 900 | 4" | CURSOR87 TE3 | 319 | 287 | INLINE - 6 | 8.7 | ECR | 55.3 | 28.0 | 58.0 |
| PFS-310 | 285 | 257 | 2800×1075×1642 | 2200 | 920 x 900 | 4" | CURSOR87 TE4 | 382 | 345 | INLINE - 6 | 8.7 | ECR | 66.6 | 28.0 | 58.0 |
| PFS-330 | 321 | 279 | 3000×1123×1671 | 2300 | 1043 x 1050 | 4" | CURSOR13 TE2A | 430 | 374 | INLINE - 6 | 12.9 | EUI | 70.0 | 35.0 | 67.0 |
| PFS-370 | 378 | 331 | 3000×1300×1671 | 2500 | 1007 x 1000 | 4" | CURSOR13 TE3A | 507 | 444 | INLINE - 6 | 12.9 | EUI | 85.8 | 35.0 | 68.0 |
| PFS-430 | 410 | 353 | 3200×1223×1691 | 2700 | 888 x 900 | 4" | CR13 TE6W | 550 | 473 | INLINE - 6 | 12.9 | ECR | 89.9 | 32.0 | 67.5 |
| PFS-450 | 453 | 401 | 3200×1223×1691 | 3000 | 888 x 900 | 4" | CR13 TE7W | 607 | 538 | INLINE - 6 | 12.9 | ECR | 100.6 | 32.0 | 67.5 |
| PFS-550 | 542 | 479 | 3200×1122×1821 | 3100 | 1007 x 1000 | 4" | CR16 TE1W | 727 | 642 | INLINE - 6 | 15.9 | ECR | 99.0 | 38.0 | 52.5 |
* ECR : Electronic Common Rail / EUI : Electronic Control Unit Injector
