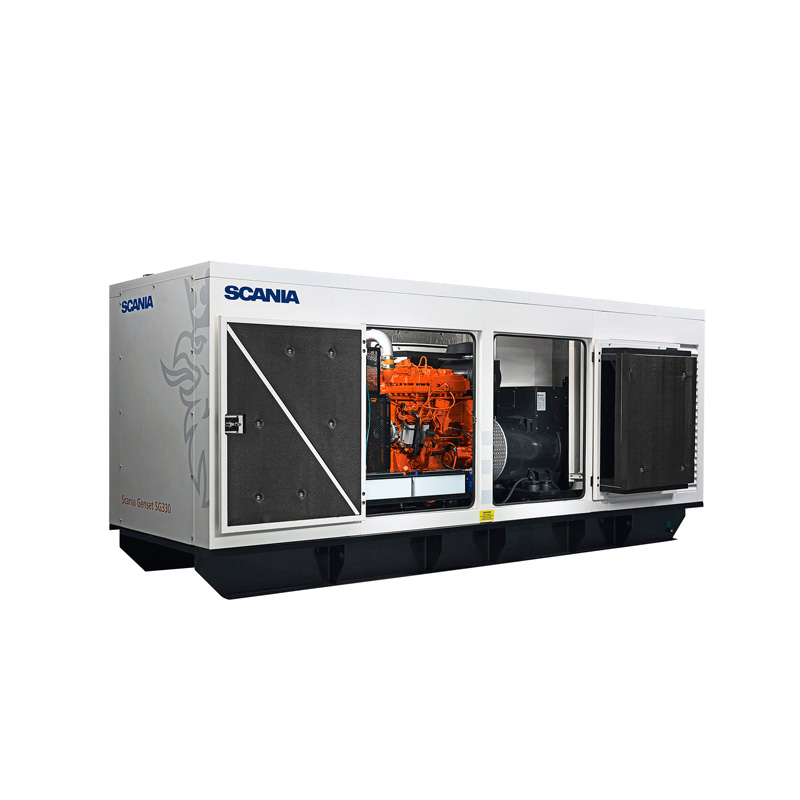

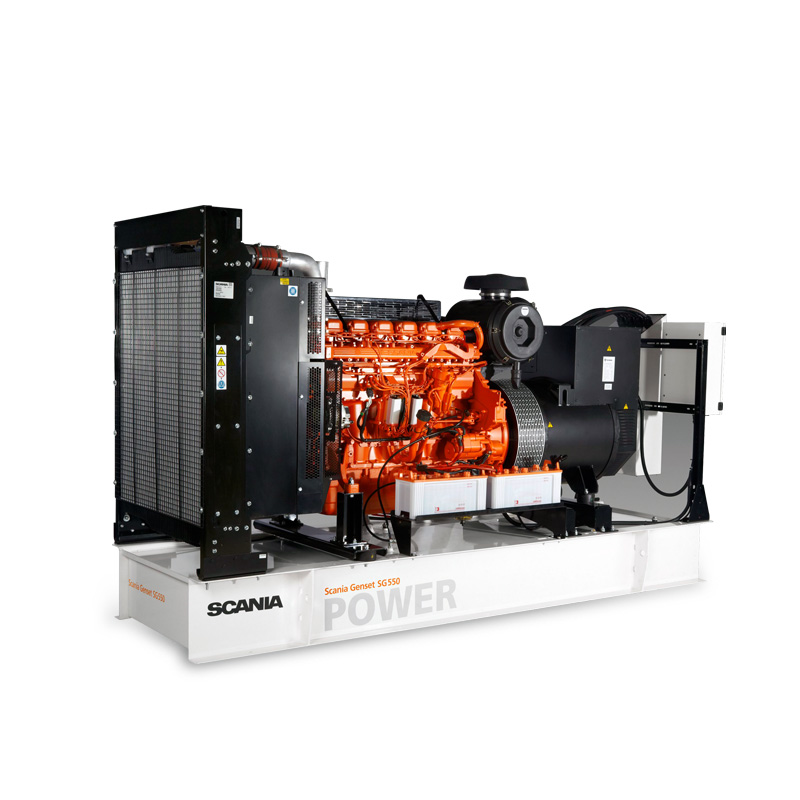

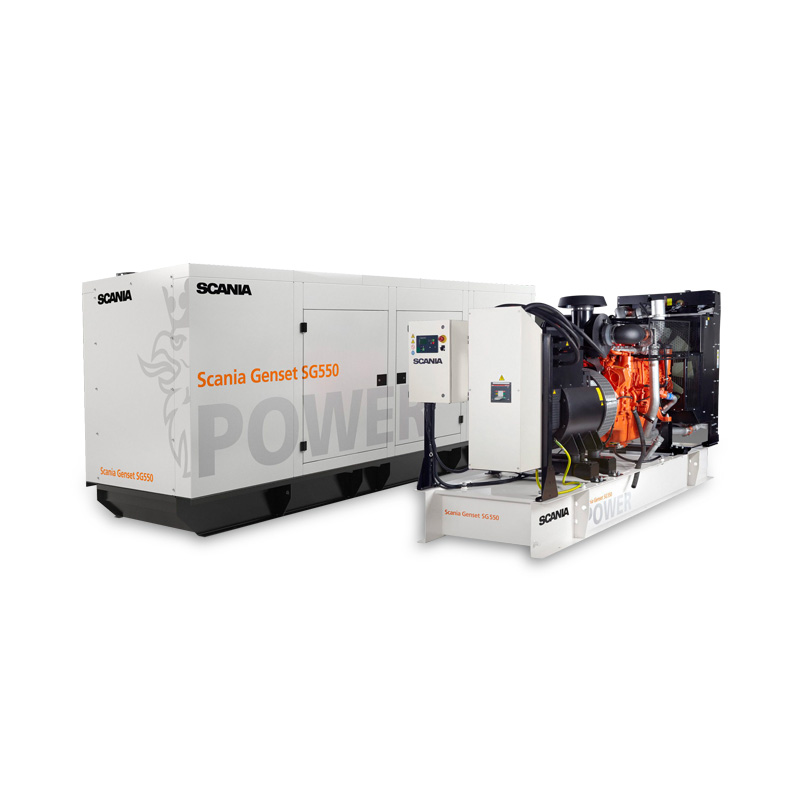

SCANIA Diesel Engine Generator set
Properties and Uses of the Product
- Frequency 50/60Hz
- Voltage 110 ~ 600V, 3.3kV, 6.6kV
- Power Range 250kW ~ 750kW
- Uses Emergency power generation in buildings, hotels, hospitals, and factories
SCANIA 60Hz / 1800rpm
| MODEL | ST'BY (kW) | PRIME (kW) | Dimension LxWxH(mm) | Weight (kg) | Radiator Core Size | Exhaust Pipe Size | Engine Model | ST'BY (kWm) | PRIME (kWm) | No. of Cylinder | Displacement (Liter) | Governer | Fuel Consumption (Liter/hr) @ PRIME 100% Load | Oil Capacity (Liter) | Coolant Capacity (Liter) |
| PSS-250 | 250 | 227 | 2900*1014*1558 | 2805 | 1010*1350 | 4" | DC09 072A (02-11) | 280 | 254 | INLINE - 5 | 9.3 | EMS | 58.9 | 31-36 | 37 |
| PSS-275 | 275 | 250 | 2900*1014*1558 | 2805 | 1010*1350 | 4" | DC09 072A (02-12) | 308 | 280 | INLINE - 5 | 9.3 | EMS | 65.6 | 31-36 | 37 |
| PSS-300 | 300 | 273 | 2900*1014*1558 | 2851 | 1010*1350 | 4" | DC09 072A (02-13) | 338 | 307 | INLINE - 5 | 9.3 | EMS | 72.6 | 31-36 | 37 |
| PSS-330 | 330 | 300 | 2900*1005*1558 | 2873 | 1010*1350 | 4" | DC09 072A (02-14) | 370 | 336 | INLINE - 5 | 9.3 | EMS | 80.6 | 31-36 | 37 |
| PSS-360 | 360 | 327 | 3100*1128*1795 | 3181 | 1130*1725 | 5" | DC13 072A (02-11) | 408 | 371 | INLINE - 6 | 12.7 | EMS | 82.1 | 30-36 | 45 |
| PSS-400 | 400 | 364 | 3100*1128*1795 | 3231 | 1130*1725 | 5" | DC13 072A (02-12) | 448 | 407 | INLINE - 6 | 12.7 | EMS | 91.5 | 30-36 | 45 |
| PSS-450 | 450 | 409 | 3100*1128*1795 | 3431 | 1130*1725 | 5" | DC13 072A (02-13) | 503 | 457 | INLINE - 6 | 12.7 | EMS | 104.8 | 30-36 | 45 |
| PSS-500 | 500 | 455 | 3100*1316*1920 | 3503 | 1316*1708 | 6" | DC13 072A (02-74) | 549 | 499 | INLINE - 6 | 12.7 | EMS | 113.9 | 30-36 | 68 |
| PSS-550 | 550 | 509 | 3100*1316*1920 | 3803 | 1316*1708 | 6" | DC16 093A (02-53) | 619 | 564 | VEE - 8 | 16.4 | EMS | 132.7 | 40-48 | 68 |
| PSS-610 | 610 | 555 | 3100*1316*1920 | 4653 | 1316*1708 | 6" | DC16 093A (02-54) | 663 | 602 | VEE - 8 | 16.4 | EMS | 143.1 | 40-48 | 68 |
| PSS-660 | 660 | 600 | 3100*1316*1920 | 4703 | 1316*1708 | 6" | DC16 072A (02-12) | 731 | 664 | VEE - 8 | 16.4 | EMS | 155.5 | 40-48 | 68 |
| PSS-700 | 700 | 636 | 3100*1316*1920 | 4653 | 1316*1708 | 6" | DC16 072A (02-13) | 754 | 685 | VEE - 8 | 16.4 | EMS | 160.4 | 40-48 | 68 |
| PSS-750 | 750 | 682 | 3100*1316*1920 | 4653 | 1316*1708 | 6" | DC16 072A (02-14) | 816 | 739 | VEE - 8 | 16.4 | EMS | 173.0 | 40-48 | 68 |
SCANIA 50Hz / 1500rpm
| MODEL | ST'BY (kW) | PRIME (kW) | Dimension LxWxH(mm) | Weight (kg) | Radiator Core Size | Exhaust Pipe Size | Engine Model | ST'BY (kWm) | PRIME (kWm) | No. of Cylinder | Displacement (Liter) | Governer | Fuel Consumption (Liter/hr) @ PRIME 100% Load | Oil Capacity (Liter) | Coolant Capacity (Liter) |
| PSS-250 | 226 | 205 | 2900*1014*1558 | 2805 | 1010*1350 | 4" | DC09 072A (02-11) | 249 | 226 | INLINE - 5 | 9.3 | EMS | 52.4 | 31-36 | 37 |
| PSS-275 | 248 | 225 | 2900*1014*1558 | 2805 | 1010*1350 | 4" | DC09 072A (02-12) | 273 | 248 | INLINE - 5 | 9.3 | EMS | 58.1 | 31-36 | 37 |
| PSS-300 | 268 | 244 | 2900*1014*1558 | 2851 | 1010*1350 | 4" | DC09 072A (02-13) | 294 | 267 | INLINE - 5 | 9.3 | EMS | 63.1 | 31-36 | 37 |
| PSS-330 | 285 | 259 | 2900*1005*1558 | 2873 | 1010*1350 | 4" | DC09 072A (02-14) | 317 | 289 | INLINE - 5 | 9.3 | EMS | 67.0 | 31-36 | 37 |
| PSS-360 | 320 | 291 | 3100*1128*1795 | 3181 | 1130*1725 | 5" | DC13 072A (02-11) | 356 | 326 | INLINE - 6 | 12.7 | EMS | 69.8 | 30-36 | 45 |
| PSS-400 | 365 | 332 | 3100*1128*1795 | 3231 | 1130*1725 | 5" | DC13 072A (02-12) | 403 | 365 | INLINE - 6 | 12.7 | EMS | 78.6 | 30-36 | 45 |
| PSS-450 | 400 | 364 | 3100*1128*1795 | 3431 | 1130*1725 | 5" | DC13 072A (02-13) | 438 | 403 | INLINE - 6 | 12.7 | EMS | 88.2 | 30-36 | 45 |
| PSS-500 | 450 | 409 | 3100*1316*1920 | 3503 | 1316*1708 | 6" | DC16 093A (02-52) | 535 | 486 | VEE - 8 | 16.4 | EMS | 108.6 | 40-48 | 68 |
| PSS-550 | 490 | 446 | 3100*1316*1920 | 3803 | 1316*1708 | 6" | DC16 093A (02-53) | 582 | 529 | VEE - 8 | 16.4 | EMS | 120.1 | 40-48 | 68 |
| PSS-610 | 530 | 482 | 3100*1316*1920 | 4653 | 1316*1708 | 6" | DC16 093A (02-54) | 614 | 558 | VEE - 8 | 16.4 | EMS | 129.3 | 40-48 | 68 |
| PSS-660 | 565 | 514 | 3100*1316*1920 | 4703 | 1316*1708 | 6" | DC16 072A (02-12) | 634 | 578 | VEE - 8 | 16.4 | EMS | 131.2 | 40-48 | 68 |
| PSS-700 | 610 | 555 | 3100*1316*1920 | 4653 | 1316*1708 | 6" | DC16 072A (02-13) | 680 | 621 | VEE - 8 | 16.4 | EMS | 141.0 | 40-48 | 68 |
