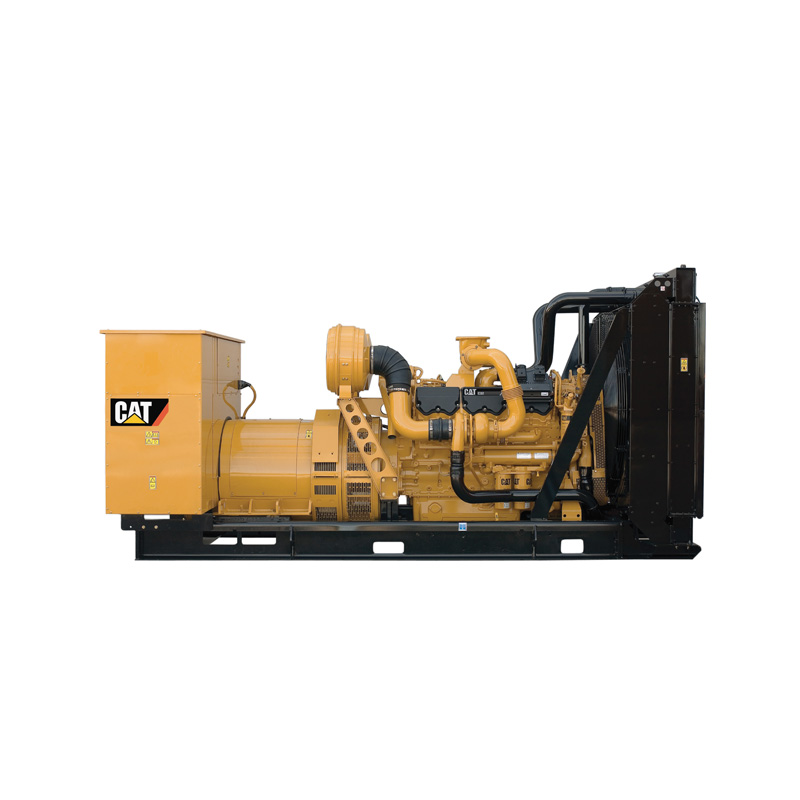

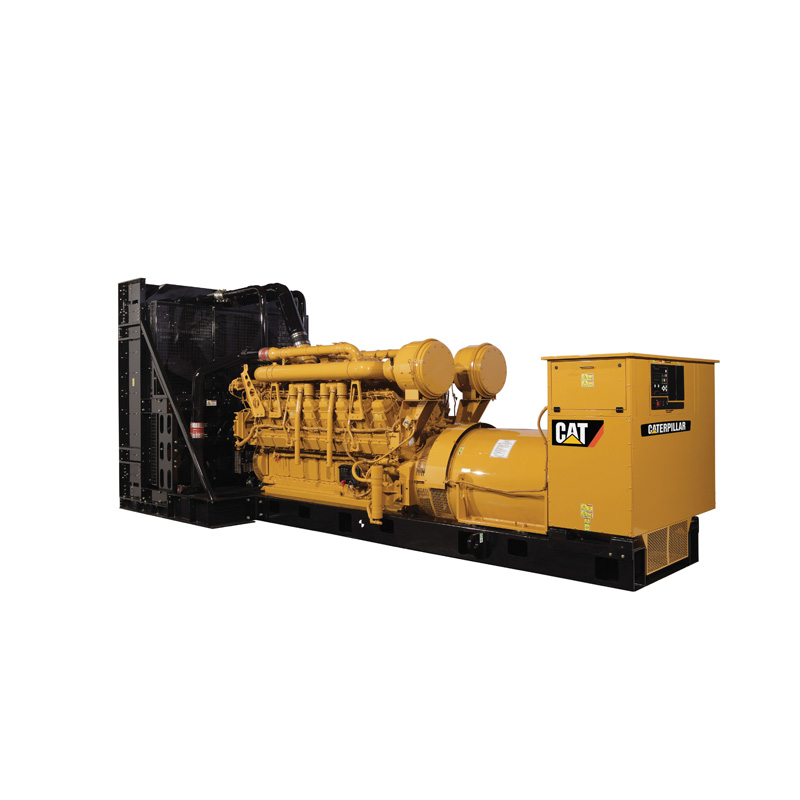

CATERPILLAR Diesel Engine Generator set

제품의 특징 및 용도

Frequency 50/60Hz
Voltage 110 ~ 600V, 3.3kV, 6.6kV
Power Range 150kW ~ 4000kW
용도 빌딩, 호텔, 병원 및 공장 등의 비상발전용

CATERPILLAR 60Hz / 1800rpm

MODEL	ST'BY (KW)	PRIME (KW)	Dimension LxWxH(mm)	Weight (kg)	Radiator Core Size	Exhaust Pipe Size	Engine Model	ST'BY (BHP)	PRIME (BHP)	No. of Cylinder	Displacement (Liter)	Governer	Fuel Consumption (Liter/hr)	Oil Capacity (Liter)	Coolant Capacity (Liter)
PAS-150	150	135	2508 x 1101 x 1443	2500	700 x 820	4"	C7.1	231	209	INLINE - 6	7.0	Mechanical	41.6	17	21
PAS-200	200	180	2772 x 1142 x 1644	2500	850 x 890	6"	C9	316	286	INLINE - 6	8.8	Electronic	52.6	39	57
PAS-250	250	225	2772 x 1142 x 1644	2500	850 x 890	6"	C9	389	351	INLINE - 6	8.8	Electronic	64.5	39	57
PAS-275	275	250	2772 x 1142 x 1644	3000	850 x 890	6"	C9	426	389	INLINE - 6	8.8	Electronic	71.0	39	57
PAS-300	300	275	2772 x 1142 x 1644	3000	850 x 890	6"	C9	467	428	INLINE - 6	8.8	Electronic	79.5	39	57
PAS-350	350	320	3833 x 1120 x 2065	4000	1050 x 1210	6"	C13	543	498	INLINE - 6	12.5	Electronic	95.0	40	58
PAS-400	400	350	3833 x 1120 x 2065	4000	1050 x 1210	6"	C13	613	538	INLINE - 6	12.5	Electronic	107.5	40	58
PAS-450	450	410	3800 x 1120 x 2125	4500	1030 x 1260	6"	C15	707	644	INLINE - 6	15.2	Electronic	119.4	60	58
PAS-500	500	455	3800 x 1120 x 2125	4500	1030 x 1260	6"	C15	779	709	INLINE - 6	15.2	Electronic	127.2	60	58
PAS-550	550	500	3900 x 1461 x 2100	5000	1400 x 1160	8"	C18	839	766	INLINE - 6	18.1	Electronic	147.8	76	55
PAS-600	600	545	3900 x 1461 x 2100	5000	1400 x 1160	8"	C18	896	831	INLINE - 6	18.1	Electronic	163.0	76	55
PAS-650	650	600	4130 x 1689 x 2320	5500	1610 x 1660	8"	C18	970	896	INLINE - 6	18.1	Electronic	175.5	76	110
PAS-700	716	650	4130 x 1689 x 2320	5500	1610 x 1660	8"	C18	1063	964	INLINE - 6	18.1	Electronic	192.0	76	110
PAS-750	750	680	4130 x 1689 x 2320	6000	1610 x 1660	8"	C18	1108	1007	INLINE - 6	18.1	Electronic	203.7	76	110
PAS-800	800	725	4125 x 1988 x 1906	7200	1570 x 1280	8"	3412	1180	1071	VEE - 12	27.0	Electronic	221.9	138	149
PAS-1000	1000	910	4578 x 1904 x 2162	8000	1590 x 1490	12"	C32	1474	1345	VEE - 12	32.1	Electronic	262.7	95	91
PAS-1100	1100	1000	5408 x 2044 x 2368	12000	1880 x 1860	12"	3512	1603	1455	VEE - 12	51.8	Electronic	305.3	310	287
PAS-1250	1250	1135	5557 x 2056 x 2368	12000	1880 x 1860	12"	3512	1818	1662	VEE - 12	51.8	Electronic	354.0	310	287
PAS-1400	1400	1275	5251 x 2286 x 2342	14000	2280 x 1890	14"	3512B	2032	1844	VEE - 12	58.6	Electronic	376.0	310	306
PAS-1500	1500	1360	5251 x 2286 x 2342	14000	2280 x 1890	14"	3512B	2172	1971	VEE - 12	58.6	Electronic	401.6	310	306
PAS-1750	1750	1600	6229 x 2286 x 2410	16000	2280 x 1890	16"	3516	2520	2304	VEE - 16	69.0	Electronic	469.8	405	476
PAS-2000	2000	1825	5923 x 2286 x 2494	17000	2270 x 2060	16"	3516B	2876	2628	VEE - 16	69.0	Electronic	613.9	405	379
PAS-2500	2500	2250	7029 x 2569 x 3018	20500	2550 x 2280	20"	3516C	3634	3273	VEE - 16	78.1	Electronic	656.8	405	413
PAS-2750	2750	2500	7703 x 2640 x 3342	22500	2550 x 2780	14" x 2	3516E	4043	3695	VEE - 16	78.1	Electronic	735.6	466	435
PAS-3000	3000	2725	4687 x 2889 x 3410	28000	2880 x 2610	20"	C175-16	4423	4034	VEE - 16	84.7	Electronic	806.0	530	936
PAS-3100	3100	2825	5878 x 2207 x 2212	23000	N/A	20"	C175-16 (수냉식)	4376	4023	VEE - 16	84.7	Electronic	795.2	530	304
PAS-3900	3900	3500	8400 x 3249 x 3827	34000	3160 x 3020	24"	C175-20	5647	5136	VEE - 20	105.8	Electronic	1039.1	681	1285
PAS-4000	4000	3600	6646 x 2365 x 2536	29000	N/A	24"	C175-20 (수냉식)	5647	5136	VEE - 20	105.8	Electronic	1038.8	681	440

CATERPILLAR 50Hz / 1500rpm

MODEL	ST'BY (KW)	PRIME (KW)	Dimension LxWxH(mm)	Weight (kg)	Radiator Core Size	Exhaust Pipe Size	Engine Model	ST'BY (BHP)	PRIME (BHP)	No. of Cylinder	Displacement (Liter)	Governer	Fuel Consumption (Liter/hr)	Oil Capacity (Liter)	Coolant Capacity (Liter)
PAS-150	132	120	2508 x 1101 x 1443	2500	700 x 820	4"	C7.1	200	183	INLINE - 6	7.0	Mechanical	35.1	17	21
PAS-200	200	184	2772 x 1142 x 1644	2500	850 x 890	6"	C9	309	285	INLINE - 6	8.8	Electronic	48.0	39	57
PAS-250	220	200	2772 x 1142 x 1644	2500	850 x 890	6"	C9	340	309	INLINE - 6	8.8	Electronic	58.3	39	57
PAS-275	240	220	2772 x 1142 x 1644	3000	850 x 890	6"	C9	371	340	INLINE - 6	8.8	Electronic	64.8	39	57
PAS-300	264	240	2772 x 1142 x 1644	3000	850 x 890	6"	C9	402	367	INLINE - 6	8.8	Electronic	71.2	39	57
PAS-350	320	280	3833 x 1120 x 2065	4000	1050 x 1210	6"	C13	485	425	INLINE - 6	12.5	Electronic	86.6	40	58
PAS-400	360	320	3833 x 1120 x 2065	4000	1050 x 1210	6"	C13	545	485	INLINE - 6	12.5	Electronic	93.4	40	58
PAS-450	400	360	3800 x 1120 x 2125	4500	1030 x 1260	6"	C15	604	549	INLINE - 6	15.2	Electronic	108.4	60	58
PAS-500	440	400	3800 x 1120 x 2125	4500	1030 x 1260	6"	C15	657	607	INLINE - 6	15.2	Electronic	117.3	60	58
PAS-550	484	440	3900 x 1461 x 2100	5000	1400 x 1160	8"	C18	720	653	INLINE - 6	18.1	Electronic	133.9	76	55
PAS-600	528	480	3900 x 1461 x 2100	5000	1400 x 1160	8"	C18	773	712	INLINE - 6	18.1	Electronic	150.6	76	55
PAS-650	572	520	4130 x 1689 x 2320	5500	1610 x 1660	8"	C18	838	766	INLINE - 6	18.1	Electronic	162.6	76	110
PAS-700	624	564	4130 x 1689 x 2320	5500	1610 x 1660	8"	C18	925	838	INLINE - 6	18.1	Electronic	174.7	76	110
PAS-750	680	616	4130 x 1689 x 2320	6000	1610 x 1660	8"	C18	1000	908	INLINE - 6	18.1	Electronic	186.8	76	110
PAS-800	720	648	4125 x 1988 x 1906	7200	1570 x 1280	8"	3412	1051	949	VEE - 12	27.0	Electronic	198.8	138	149
PAS-1000	880	880	4578 x 1904 x 2162	8000	1590 x 1490	12"	C32	1297	1183	VEE - 12	32.1	Electronic	238.6	95	91
PAS-1100	1000	920	5408 x 2044 x 2368	12000	1880 x 1860	12"	3512	1444	1328	VEE - 12	51.8	Electronic	271.6	310	287
PAS-1250	1120	1020	5557 x 2056 x 2368	12000	1880 x 1860	12"	3512	1616	1462	VEE - 12	51.8	Electronic	321.3	310	287
PAS-1400	1200	1088	5251 x 2286 x 2342	14000	2280 x 1890	14"	3512B	1757	1603	VEE - 12	58.6	Electronic	341.8	310	306
PAS-1500	1280	1200	5251 x 2286 x 2342	14000	2280 x 1890	14"	3512B	1871	1757	VEE - 12	58.6	Electronic	364.4	310	306
PAS-1750	1600	1460	6229 x 2286 x 2410	16000	2280 x 1890	16"	3516	2293	2095	VEE - 16	69.0	Electronic	437.5	405	476
PAS-2000	1800	1600	5923 x 2286 x 2494	17000	2270 x 2060	16"	3516B	2595	2293	VEE - 16	69.0	Electronic	466.4	405	379
PAS-2500	2200	2000	7029 x 2569 x 3018	20500	2550 x 2280	20"	3516C	3240	2957	VEE - 16	78.1	Electronic	593.0	405	413
PAS-2750	2400	2180	7703 x 2640 x 3342	22500	2550 x 2780	14" x 2	3516E	3552	3245	VEE - 16	78.1	Electronic	662.5	466	435
PAS-3000	2400	2180	4687 x 2889 x 3410	28000	2880 x 2610	20"	C175-16	3536	3226	VEE - 16	84.7	Electronic	721.7	530	936
PAS-3100	2480	2260	5878 x 2207 x 2212	23000	N/A	20"	C175-16 (수냉식)	3501	3190	VEE - 16	84.7	Electronic	711.6	530	304
PAS-3900	3120	2800	8400 x 3249 x 3827	34000	3160 x 3020	24"	C175-20	4517	4109	VEE - 20	105.8	Electronic	922.4	681	1285
PAS-4000	3200	2880	6646 x 2365 x 2536	29000	N/A	24"	C175-20 (수냉식)	4517	4109	VEE - 20	105.8	Electronic	922.4	681	440
