사업소개 발전기

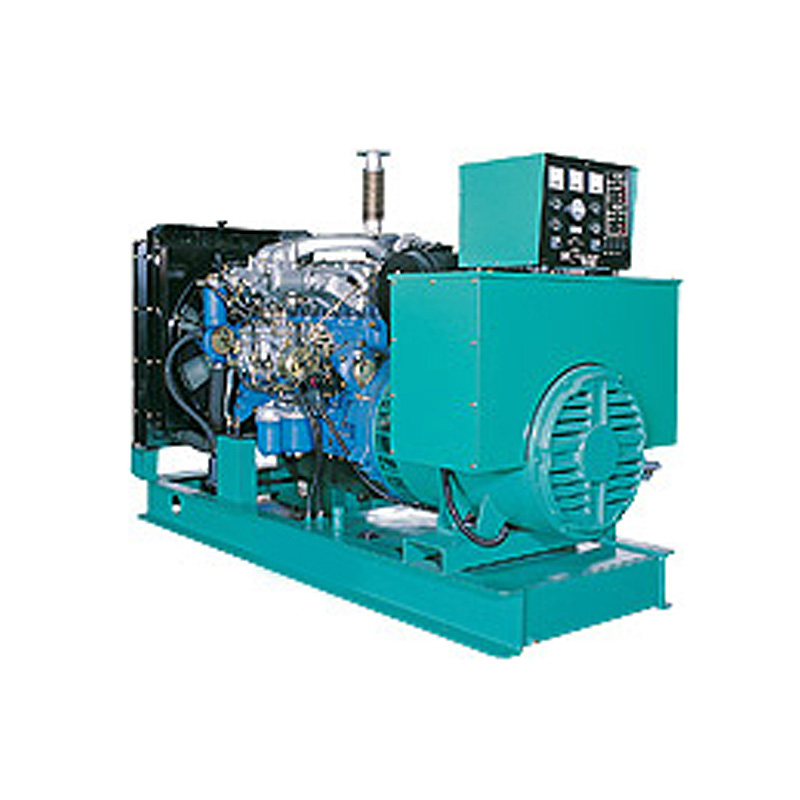

HYUNDAI Diesel Engine Generator set
제품의 특징 및 용도
- Frequency 50/60Hz
- Voltage 110 ~ 600V, 3.3kV, 6.6kV
- Power Range 40 ~ 320kW
- 용도 빌딩, 호텔, 병원 및 공장 등의 비상발전용
GENERATOR SET HYUNDAI ENGINE(60Hz/1,800RPM)
| MODEL | ST'BY (kw) |
PRIME (kw) |
Dimension L×W×H(mm) |
Weight (Kg) |
Radiator Size (mm) |
Exhaust Pipe Size |
Engine Model |
| PHS-26 | 26 | 24 | 1500×600×1000 | 900 | 550×500 | 2-1/2" | D4BB-G2 |
| PHS-40 | 40 | 36 | 1950×700×1310 | 1200 | 575×570 | 2-1/2" | D4AK-G |
| PHS-55 | 54 | 49 | 1950×700×1310 | 1200 | 575×570 | 2-1/2" | D4AK-G |
| PHS-70 | 70 | 63 | 1950×700×1310 | 1200 | 575×570 | 2-1/2" | D4AK-G |
| PHS-85 | 85 | 78 | 2440×800×1310 | 1400 | 655×650 | 2-1/2" | D6BR-G |
| PHS-115 | 115 | 107 | 2310×800×1520 | 1600 | 665×650 | 2-1/2" | D6BT-G |
| PHS-165 | 165 | 149 | 2500×880×1460 | 2000 | 750×766 | 2-1/2" | D6AZ-G2 |
| PHS-200 | 200 | 184 | 2500×880×1460 | 2000 | 750×766 | 2-1/2" | D6AZ-G1 |
| PHS-230 | 230 | 209 | 2600×1080×1430 | 2400 | 750×765 | 4" | D6AC-G |
| PHS-275 | 275 | 250 | 2900×1030×1580 | 2800 | 810×880 | 4" | D6CA-G3 |
| PHS-300 | 300 | 273 | 2920×1030×1580 | 2800 | 810×880 | 4" | D6CC-G2 |
| PHS-350 | 350 | 318 | 2940×1030×1580 | 2800 | 810×880 | 4" | D6CC-G1 |
| ST'BY (BHP) |
PRIME (BHP) |
NO.of Cylinder |
Displace ment(liter) |
Governor | Fuel Consumption (liter/hr) |
Oil Capacity (liter) |
Coolant Capacity (liter) |
| 45 | 41 | INLINE-4 | 2.607 | Machine | 10.3 | 5.4 | 3.9 |
| 60 | 54 | INLINE-4 | 3.568 | Machine | 12.0 | 8.5 | 8.3 |
| 82 | 74 | INLINE-4 | 3.298 | Machine | 15.6 | 8.5 | 8.3 |
| 107 | 95 | INLINE-6 | 3.907 | Electronic | 20.0 | 8.5 | 8.3 |
| 130 | 117 | INLINE-6 | 7.545 | Machine | 25.4 | 13.0 | 12.5 |
| 180 | 162 | INLINE-6 | 7.545 | Machine | 34.5 | 13.0 | 12.5 |
| 260 | 234 | INLINE-6 | 11.149 | Machine | 48.2 | 24.0 | 22.0 |
| 309 | 278 | INLINE-6 | 11.149 | Electronic | 60.5 | 24.0 | 24.0 |
| 350 | 315 | INLINE-6 | 11.149 | Electronic | 64.3 | 24.0 | 24.0 |
| 460 | 460 | INLINE-6 | 12.344 | Electronic | 96.0 | 28.0 | 42.0 |
| 530 | 470 | INLINE-6 | 12.920 | Electronic | 96.0 | 28.0 | 42.0 |
GENERATOR SET HYUNDAI ENGINE(50Hz/1,500RPM)
| MODEL | ST'BY (kw) |
PRIME (kw) |
Dimension L×W×H(mm) |
Weight (Kg) |
Radiator Size (mm) |
Exhaust Pipe Size |
Engine Model |
| PHS-40 | 34 | 30 | 1950×700×1310 | 1200 | 575×570 | 2-1/2" | D4AF-G |
| PHS-55 | 40 | 36 | 1950×700×1310 | 1200 | 575×570 | 2-1/2" | D4AK-G |
| PHS-70 | 56 | 50 | 1950×700×1310 | 1200 | 575×570 | 2-1/2" | D4DA-G |
| PHS-85 | 73 | 66 | 2440×800×1310 | 1400 | 665×650 | 2-1/2" | D6BR-G |
| PHS-115 | 102 | 93 | 2310×800×1520 | 1600 | 665×650 | 2-1/2" | D6BT-G |
| PHS-165 | 179 | 161 | 2500×880×1460 | 2000 | 750×766 | 2-1/2" | D6AZ-G2 |
| PHS-200 | 152 | 137 | 2500×880×1460 | 2000 | 750×766 | 2-1/2" | D6AZ-G1 |
| PHS-230 | 211 | 197 | 2600×1080×1430 | 2400 | 750×765 | 4" | D6AC-G |
| ST'BY (BHP) |
PRIME (BHP) |
NO.of Cylinder |
Displace ment(liter) |
Governor | Fuel Consumption (liter/hr) |
Oil Capacity (liter) |
Coolant Capacity (liter) |
| 50 | 45 | INLINE-4 | 3.568 | Machine | 12.0 | 8.5 | 8.3 |
| 60 | 54 | INLINE-4 | 3.298 | Machine | 15.6 | 8.5 | 8.3 |
| 85 | 75 | INLINE-4 | 3.907 | Electronic | 20.0 | 8.5 | 8.3 |
| 110 | 99 | INLINE-6 | 7.545 | Machine | 25.4 | 13.0 | 12.5 |
| 155 | 140 | INLINE-6 | 7.545 | Machine | 34.5 | 13.0 | 12.5 |
| 235 | 212 | INLINE-6 | 11.149 | Machine | 48.2 | 24.0 | 24.0 |
| 270 | 243 | INLINE-6 | 11.149 | Electronic | 60.5 | 24.0 | 24.0 |
| 320 | 288 | INLINE-6 | 11.149 | Electronic | 64.3 | 24.0 | 24.0 |
